Industrial Products Switched Interlocked Sockets

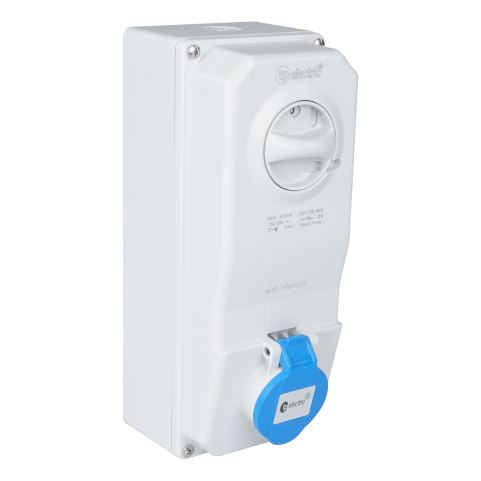

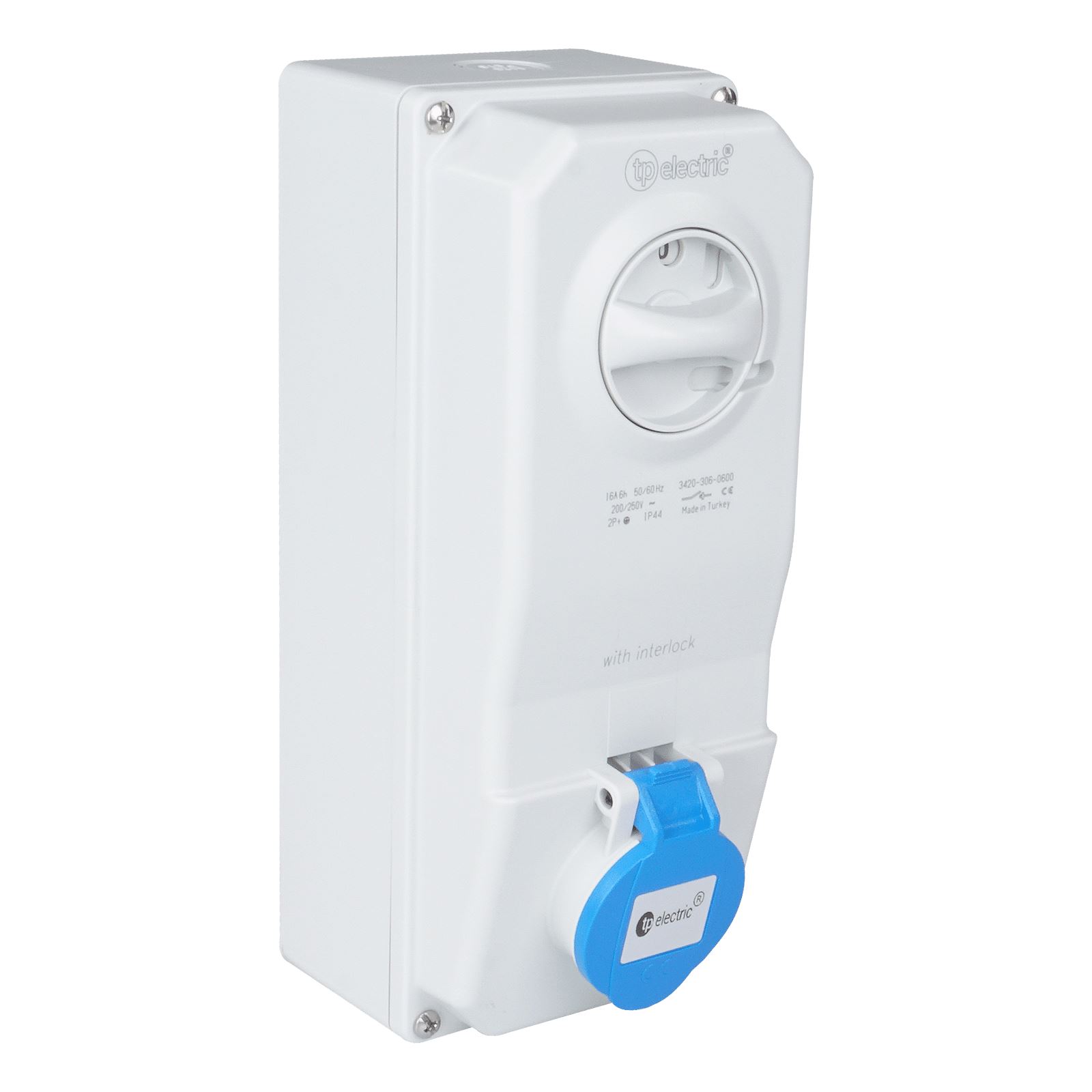

Switched Interlocked Socket

Switched Interlocked Socket

3420-306-0600
Current
16A
Number Of Poles
3
Protection Class
IP 44
Clock Position
6h
With Fuse Slot
None
Product Type
Wall Mount
Voltage
200 - 250V. AC
  • IP 44 Protection Class
  • Suitable for different earth contact positions
  • Size of front and back cable gland, PG16 and M25
Mechanical Locking
  • The switch can not be turned to 1 (On) position and energized, without inserting the plug in
  • When the plug is inserted, the switch can be turned to 1 (ON) position and energised
  • The plug can not be removed when the switch is in 1 (ON) position (when the system is energised)
  • The plug can be removed when the switch is turned to 0 (OFF) position (when the system is de-energised
Advantages
  • All components are assembled on the cover
  • Due to small design, they occupy small space
  • All the cabling is made so ready to connect
  • Conforming to EN 60309 standards
